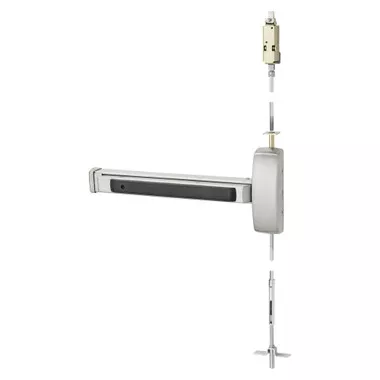

The Sargent AD8610E ETW LHR 32D is a rim-mounted exit device built for high-traffic commercial and institutional doors. Engineered for metal doors 1 3/4 inches thick minimum, this Grade 1 panic hardware delivers the durability and security required in schools, offices, hospitals and other facilities where reliable egress control is critical.
This model includes a 32-inch F rail pre-cut to size, paired with 650 top and 606 bottom strikes rated for fire and panic applications. Installation requires standard machine screws on metal doors with a 41-inch centerline from finished floor. Contact our authorized dealer team at [email protected] or 1-877-207-6067 for guidance on keying, electric options like delayed egress or latch monitoring, and custom configurations for your specific door opening.
Specifications
- Brand: Sargent
- Model: AD8610E ETW LHR 32D
- Configuration: Rim-mounted exit device
- Door Types: Metal doors, 1 3/4″ to 2 1/4″ thick
- Rail Type: F Rail for 33″ to 36″ door widths
- Rail Size: Pre-cut for 32″ (no cutting required)
- Strikes: 650 Top, 606 Bottom (panic and fire rated)
- Pushbar Projection (Neutral): 3″
- Pushbar Projection (Depressed): 2 1/8″
- Center Case Dimensions: 8 3/8″ x 2 5/8″
- Device Centerline: 41″ from finished floor (standard)
- Top Bolt: Stainless steel
- Fasteners: Machine screws supplied
- Maximum Door Height: 96″
- Dogging: Hex key standard (non fire-rated)
- Grade: ANSI/BHMA Grade 1
