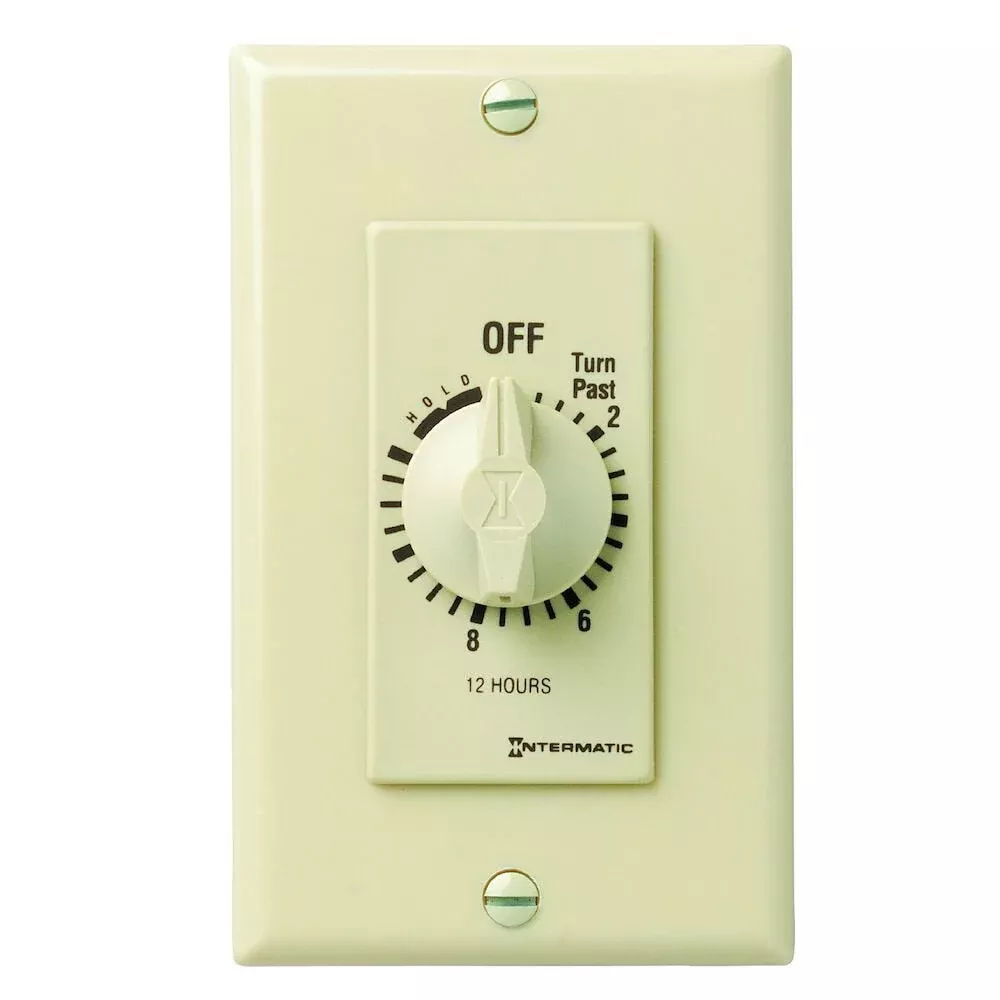

Intermatic – FD12HH – Spring Wound Countdown Timer, Decorator Style, Ivory

Spec Sheet  Install Manual

Intermatic FD12HH Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 12 Hour Max, With Hold, Ivory

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

• 12-Hour timer with hold
• SPST (Single-Pole Single-Throw)
• No electricity required to operate
• Replaces any standard or decorator single- or multi-gang wall switch
• Automatically limits ON time for energy consuming loads
• Quick and easy installation
• Time-saving up front terminal connection with teeter-type terminals
• Breaks circuit at end of timing cycle
• Incandescent/fluorescent/CFL/LED compatible
• No neutral connection is required

Applications:

• Air Movement & Ventilation
