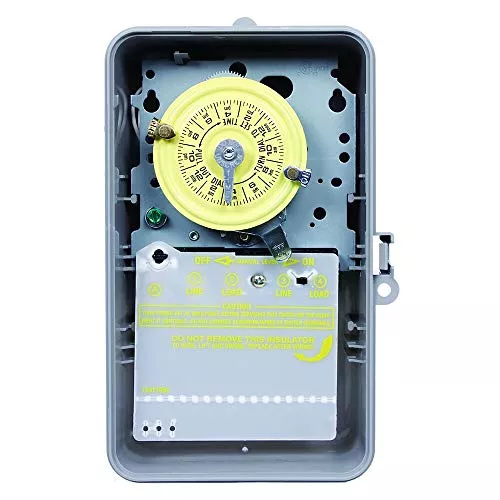

The Intermatic electromechanical timer is a 24-hour device with 2 poles. It features a DPST-NO (double-pole, single-throw, normally open) contact form, and operates on a voltage range of 208 to 277 VAC. The timer is rated for 40 amps and provides 2 HP of contact capacity at 120V and 5 HP at 240V. It does not include a day skipper function.
Housed in a gray plastic enclosure, the timer meets NEMA 3R standards for outdoor use. The minimum time setting is 1 hour, and the maximum setting is 23 hours. It can handle up to 12 on/off cycles. The device measures 5-1/2 inches in width, 3-13/16 inches in depth, and 9-7/16 inches in height. Two trippers are included with the timer.
This industrial electrical supply item is manufactured by Intermatic in Mexico.
The key specifications of this Intermatic electromechanical timer are:- 24-hour operation- 2 poles- DPST-NO contact form- 208 to 277 VAC voltage range- 40 amp rating- 2 HP contact capacity at 120V, 5 HP at 240V- No day skipper function- Plastic gray enclosure, NEMA 3R rating- 1 hour minimum, 23 hour maximum time setting- Up to 12 on/off cycles- Dimensions: 5-1/2″ W x 3-13/16″ D x 9-7/16″ H- 2 trippers included- Manufactured in Mexico
This Intermatic timer is a versatile and durable electromechanical device suitable for a wide range of industrial electrical applications that require accurate and reliable timing control.
product information:
| Attribute | Value | ||||
|---|---|---|---|---|---|
| color | Gray | ||||
| brand | Intermatic | ||||
| material | Plastic | ||||
| product_dimensions | 3.81″D x 5.5″W x 9.43″H | ||||
| item_weight | 2 pounds | ||||
| upc | 078275000162 | ||||
| global_trade_identification_number | 00078275000162 | ||||
| manufacturer | Intermatic | ||||
| part_number | T104P | ||||
| item_model_number | T104P | ||||
| is_discontinued_by_manufacturer | No | ||||
| shape | Rectangular | ||||
| voltage | 277 Volts | ||||
| wattage | 3 watts | ||||
| item_package_quantity | 1 | ||||
| number_of_pieces | 1 | ||||
| switch_style | DPST | ||||
| included_components | Unit^Instruction Guide | ||||
| batteries_included | No | ||||
| batteries_required | No | ||||
| warranty_description | See manf description. | ||||
| customer_reviews |
|
||||
| best_sellers_rank | 104,118 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) 121 in Wall Timer Switches |
||||
| date_first_available | December 3, 2009 |
