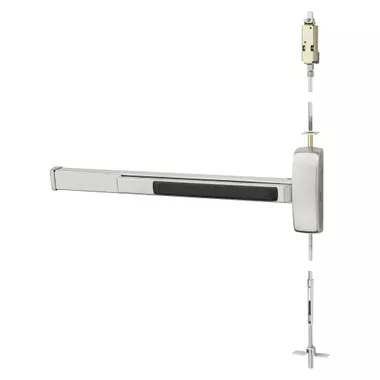

The Sargent 1256-WD8615G is a Grade 1 exit device designed for metal doors requiring durable, long-lasting security. Part of the proven 80 Series, it features modular construction with few moving parts, making it maintenance-free and ideal for facilities prioritizing reliability and code compliance across diverse applications.
This left-hand reverse (LHR) model installs on 1-3/4″ minimum thickness metal doors with 4-1/2″ minimum stile width. Four rail sizes accommodate door widths from 24″ to 48″. Electric options including delayed egress, alarms, and photoluminescent coatings are available. Contact E.D. Locks at [email protected] or 1-877-207-6067 for expert assistance selecting the right configuration and strike assembly for your opening.
Specifications
- Grade: ANSI/BHMA Grade 1
- Configuration: Rim with LHR (Left-Hand Reverse)
- Door Compatibility: Metal, 1-3/4″ (44mm) minimum, up to 2-1/4″ thick
- Stile Width: 4-1/2″ (114mm) minimum
- Rail Sizes: E (24″-32″), F (33″-36″), J (37″-42″), G (43″-48″)
- Device Centerline: 41″ (1041mm) standard; 38″ (965mm) for accessible applications
- Center Case: 8-3/8″ (213mm) x 2-5/8″ (67mm)
- Pushbar Projection: 3″ (76mm) neutral, 2-1/8″ (54mm) depressed
- Top Bolt: Stainless steel
- Strike: 650 Top & 606 Bottom (panic/fire-rated)
- Dogging: Hex key standard; cylinder dogging available
- Max Door Height: 96″ (HC/WS options)
- Electric Options: Alarm, Beacon, photoluminescent, illuminated touchpad, latch monitoring, delayed egress, and more
