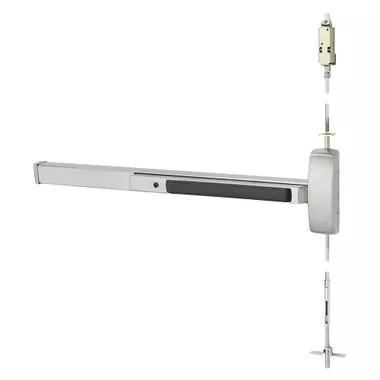

The Sargent 80 Series AD8606G is a heavy-duty rim exit device for metal doors, engineered for secure emergency egress in commercial and institutional buildings. This left-hand reverse (LHR) model exceeds ANSI/BHMA Grade 1 standards for strength and cycle performance, with modular construction and minimal moving parts ensuring decades of reliable, maintenance-free operation.
Fits 1-3/4″ minimum metal doors with 4-1/2″ minimum stile width; rails are factory-cut for door widths 24″ to 48″. Includes 650 top and 606 bottom strikes (panic and fire-rated), stainless steel hardware, and optional electric features (alarm, photoluminescent coating, delayed egress, monitoring). Contact an authorized E.D. Locks specialist at [email protected] or 1-877-207-6067 for configuration guidance and expert installation support.
Specifications
- Model: AD8606G LHR 32D
- Brand: Sargent
- Configuration: Rim Exit Device
- Door Compatibility: 1-3/4″ to 2-1/4″ metal doors, minimum 4-1/2″ stile width
- Standard Centerline Height: 41″ from finished floor (38″ for elementary schools)
- Center Case Dimensions: 8-3/8″ wide x 2-5/8″ tall
- Pushbar Projection: 3″ (neutral), 2-1/8″ (depressed)
- Rails Available: E (24-32″), F (33-36″), J (37-42″), G (43-48″)
- Hardware: Stainless steel fasteners supplied
- Standards: ANSI/BHMA Grade 1
- Dogging: Hex key standard (cylinder dogging available)
- Electric Options: Alarm, beacon, photoluminescent, illuminated touchpad, latch monitoring, delayed egress, remote retraction available
