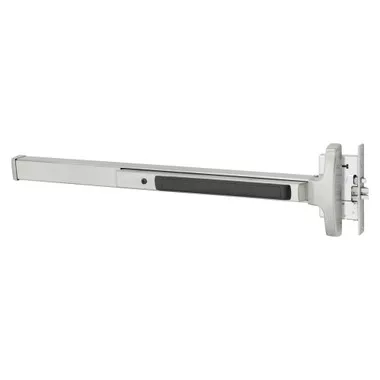

The Sargent 8376J mortise exit device is engineered for commercial facilities requiring durable, code-compliant egress hardware. Ideal for wood or metal doors 1-3/4″ thick, this Grade 1 certified device combines modular construction with minimal maintenance needs, delivering reliable security throughout the building lifecycle.
The 8376J with J Rail accommodates doors 37″ to 42″ wide without cutting for 42″ doors. Verify your door thickness and width before ordering; contact our authorized dealer team at [email protected] or 1-877-207-6067 for expert assistance with configuration, keying, and installation guidance.
Specifications
- Series: Sargent 80 Series
- Configuration: Mortise
- Rail Type: J Rail
- Handing: RHR (Right Hand Reverse)
- Door Width Range: 37″ to 42″ (94cm to 107cm)
- No Cutting Required: 42″ doors
- Door Thickness: 1-3/4″ (44mm)
- Minimum Stile Width: 4-1/2″ (114mm)
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Construction: Modular with few moving parts
