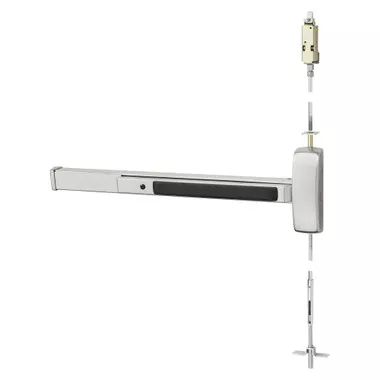

The Sargent WD8615J ETF RHR 32D is a Grade 1 exit device engineered for metal doors in commercial and institutional buildings. This rim-mounted panic hardware combines durability with low maintenance, featuring modular construction and few moving parts to deliver reliable emergency egress and security throughout the building’s lifespan.
This device fits 1-3/4″ minimum thickness metal doors with a 4-1/2″ minimum stile width and includes a J-rail pre-cut for 37″ to 42″ door widths. The 80 Series exceeds ANSI/BHMA requirements and supports optional delayed egress, alarm, and electric latch retraction configurations. Contact our authorized dealer specialists at [email protected] or 1-877-207-6067 for sizing, keying, and application guidance.
Specifications
- Brand: Sargent
- Model: WD8615J ETF RHR 32D
- Configuration: Rim, right-hand reverse
- Door Thickness: 1-3/4″ to 2-1/4″ (44-57mm)
- Stile Width: 4-1/2″ (114mm) minimum
- Rail: J-Rail for 37″ to 42″ door widths, pre-cut to 42″
- Strike: 650 Top, 606 Bottom (panic and fire-rated)
- Dogging: Hex key standard
- Device Centerline: 41″ (1041mm) from finished floor
- Pushbar Projection: 3″ neutral, 2-1/8″ depressed
- Center Case: 8-3/8″ x 2-5/8″
- Top Bolt: Stainless steel
- Maximum Door Height: 96″
- Grade: ANSI/BHMA Grade 1
