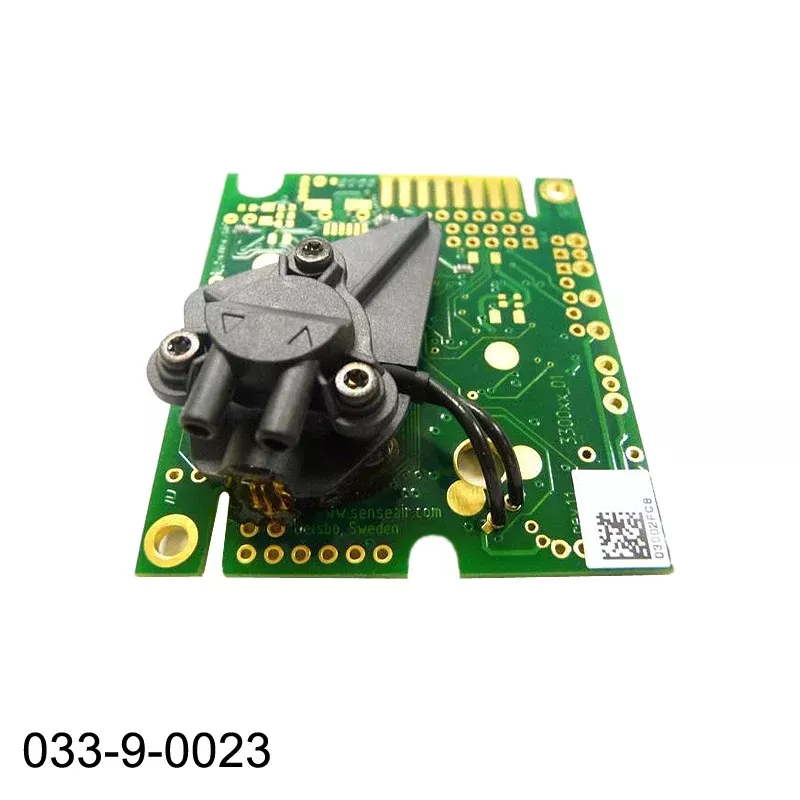

The (033-9-0023) K33 ICB CO2 sensor (formerly known as SE-0025) measures up to 10% carbon dioxide in biological or scientific applications where high levels of CO2 are maintained in an enclosed environment.
**Please Note: 6-8 week lead time**
Features
- Long-life NDIR CO2 Sampling Sensor
- Individually calibrated for peak performance
- Easy communication using industry standard I/O
- Properly configured, can take a sample containing almost 100% humidity
Models
- 033-9-0023 K33 ICB 10% CO2 Sensor Only – for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor. For our K33 ICB 30% CO2 sensor click here.
- CM-0058 K33 ICB 10% CO2 Sensor Development Kit – Easy to use, simply plug the sensor module into your PC via USB. The Devkit includes a K33 ICB sensor with pre-soldered connectors that provide power and connectivity. Use it for evaluation, rapid application development or for experiments. Uses our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
Specifications
- Measurement Range: 0 – 100,000 ppm (0-10%)
- CO2 Measurement: Non-dispersive infrared (NDIR)
- Response Time: <20s, sampling @ 0.2 l/min gas flow
- Accuracy: ±0.3%vol (CO2 ) ±3% of measured value
- Resolution: 0.001% / 10ppm
- Repeatability: ± 100ppm vol ± 1% of measured value
- Sampling Method: Sample tube draw (diffusion with cap removed)
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check of the sensor module on startup
- Dimensions: 2.0 × 2.25 × 0.62 inches
- Sensor Life Expectancy: > 15 years
Sensor Electrical / Mechanical
- Power Input: 5-14 VDC
- Current Consumption: 40 mA average
Development Kit Includes
- 6’ (1.8m) USB -UART bridge cable (non-standard)
- 6VDC universal wall power supply with connector for sensor 120/240 VAC 50/60 Hz
- 4x AA battery pack w/ connector for sensor
Warranty
- 90 days – See CO2Meter Terms and Conditions.
